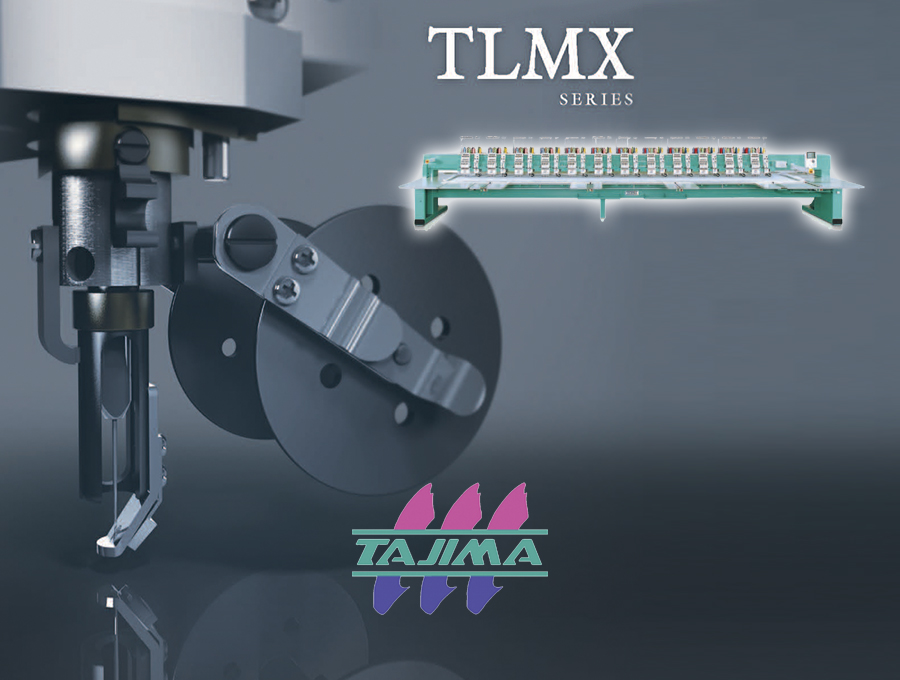

TLMX series (Mixed type)

1500/1200/900/600

TLMX series (Mixed type)
Innovative combination embroidery machines to create a greater diversity of variations.

Attachement in Compact Units
Attachements for taping, coiling, zigzag swing stitch embroidery are supplied in units. It is easy to replace the units with a screw. Once adjustment is done, readjustment is not necessary. Working efficiency has been drastically increased.

M-axis Free Control System to Allow Adjustment Head by Head
Bobbins can be moved as necessary by using the Tension base switch. This facilitates embroidery operations like bobbin exchange or machine adjustment in units of heads.

M-axis Start Direction Control to Secure Stitching
To prevent stitch start errors, this function stops the bobbin and guide temporarily in the stitching direction after stitching the materials.

Zigzag Swing Stitch Data Generator<PAT> to generate frame movement
This function automatically generates 6 kinds of zigzag swing stitch patterns based on the running stitch data. They can be selected according to the type of material or embroidery design.(See "Stitch Variations".)

W-Bobbin Attachment to Develop your Desigh Arrangements
bobbins are mountable to a lock-stitch chenille head. Thie enables 2 kinds of embroidery stitches of taping and zigzag swing stitch embroidery without replacing bobbins, reducing the time for replacement of materials and developing the potentials of your designs.

Automatic Nipple Lifting Function to Improve Working Efficiency
Both the Needles and Nipples are lifted up to their retracting positions and bobbins return to the fixed position right after completion of embroidery. This facilitates embroidery works like frame exchange.

Nipple Stroke Adjustment in Response to Materials <PAT>
Nipple stroke can be adjusted on the operation panel according to the material being used.Adjustment range is a max. of 8mm from the lower dead point. The height of the lower dead point is also adjustable up to 3mm. Nipple stroke adjustment adds variations to the stitch finishing conditions on the materials.

Special Tape (Cord) Guide
Tajima's special Tape Guides can be easily changed according to the type of material to be used.

Scale Up / Down, Rotate
You can scale your designs down to 50% or up tp 200% in increments of 1%, and rotate in 1-degree increments.

Automatic Repeat
A design can be automatically repeated up to 99 times both vertically and horizontallly.

Frame Back / Forward
Frame Back / Forward is available in units of stitches, color change or designated stitch count.

Origin Return
The frame can be either manually or automatically returned to the design starting point (while the machine is stopped), even if the end point is different from the starting point.

Automatic Offset / Manual Offset
Facilitates applique fabric placement and frame changing.

Automatic Upper / Under Tread Trimming Device <ATH>
Automatically operates by commands in the design data.

Power Failure Control Measures
You can continue to operate the machine after power failure during embroidery without being annoyed by misproduction due to design displacement.

Factory Options

Automatic Lubrication System
Lubrication to heads or heads and rotary hooks is performed automatically
for improved productivity and maintenance-free operation.

Jumbo Rotary Hook
The special jumbo size rotary hooks and stitching mechanism of our own design have
enabled various thickness of upper threads from thin to thick to be used readily.
Due to expanded bobbin capacity (twice as much as the small hook), bobbin
changing tasks have been drastically decreased, increasing productivity.


Auto Frame Changer (AFC)
Tajima's extremely accurate and powerful AFC frame changing mechanism
makes it possible to produce high quality, continuous embroidery.

→more detail

Sequin Device IV
Wide range of sequins from small to large sizes or in various shapes like
noncircular or eccentric type are applicable for creation of you designs
as needed, depending on your applications.

→more detail

Sequin Device III Twin Type <PAT>
It is now possible to embroider a max. of 4 different sizes, shapes and colors on each head.
2 kinds of sequins on one side can be interchanged and embroidered at high speeds as desired.
This next-generation Sequin device permits more design options and improves production efficiency.
nstallable in a compact design even to the machines with small head intervals. → more detail

Options

Jog Remote-Controller <PAT>
The jog remote-controller has consolidated the function of frame
travel operations. It is independent of the operation panel and allows
to move the frame while the operator is close to the needles.

Option For Standard Embroidery Heads

High-Speed Cording Device (KB-2M)
New variations of looping or cording embroidery can be
added to a design by switching between 2 kinds of attachments.

Boring Device II
A special knife bores a hole in a fabric and then a needle and thread sew open the hole.
The size of the hole is adjustable and the shape can be created through the process of digitizing to meet your desires.
This device is applicable to all normal embroidery heads and easily increases the value of embroidered products.


Emb. Lame Attachment
Boring designs can be scaled up or down
including Mirror Conversion changes

Option For Lock-stitch Chenille Heads

Special Guides
Replacement of Guides expands your embroidery variations and allows you to create unique expressions with ease.

* Standard type Guide base is used in common.
