Aeoon Kyo Hybrid Series

PRODUCT HIGHLIGHTS

DESIGNED FOR THE INDUSTRIAL USE
First combination of a screen- and digital textile printing machine, also available as an add-on to your regular Kyo Series

Kyo Hybrid is flexible – to truly be a hybrid
Choose between digital printing, screen printing or a combination of both. The Aeoon Kyo Hybrid Series allows you a maximum on flexibility by letting you choose between the production settings. Work on three pallets at the same time with a mixed production setting.

Kyo Hybrid is thrifty – to save your resources
Profit from the combination of a digital textile and a screenprinter in every way possible. The Aeoon Kyo Hybrid Series uses less white ink thanks to its screenprinting unit. This will save you some money and still gives you the best printing results without time loss.

TEXTILE PRINTERS
Order Now Contact Us

Product Details

POSSIBILITIES
Choose from many production possibilities
Kyo Hybrid is flexible – to truly be a hybrid
Choose between digital printing, screen printing or a combination of both. The Aeoon Kyo Hybrid Series allows you a maximum on flexibility by letting you choose between the production settings. Work on three pallets at the same time with a mixed production setting.



SAVE COSTS
Reduce your costs by screenprinting
Kyo Hybrid is thrifty – to save your resources
Profit from the combination of a digital textile and a screenprinter in every way possible. The Aeoon Kyo Hybrid Series uses less white ink thanks to its screenprinting unit. This will save you some money and still gives you the best printing results without time loss.

CUSTOMIZABLE
Personalize your prints in pin-sharp quality
Kyo Hybrid is customizable – to adapt to changes
Reduce your setup costs and the time consuming pre-printing processes to a minimum. Make short runs more affordable by excluding film masters, stencils or plates. The Aeoon Kyo Hybrid Series prints garments in no time, in short runs and in extraordinary high printing quality. Simply insert the garment in the pallet and press the print button.

ECO FRIENDLY
Oeko-Tex and GOTS certified quality inks
Kyo Hybrid is eco – to be good to nature
We solely use inks that can be Oeko-Tex and GOTS certified. Our vibrant colours provide astonishing results on black, coloured and white textiles. The Aeoon Kyo Hybrid Series provides to you the best substances for environmental conscious businesses. Make use of these environmentally friendly inks to reduce your carbon footprint.

EASY HANDLING
Intuitive software and touchscreen
Kyo Hybrid is easy to use – to minimize the steps
Navigate through the settings on the machine’s touchscreen. You won’t have to prepare your file – our RIP software does is automatically. The Aeoon Kyo Hybrid Series automatically generates a white underbase, minimizes the amount of ink to reduce the costs. Use pixel and vector graphics directly without using additional file preparation programs such as Adobe Photoshop

FLASH DRYER
Don’t lose time drying
Kyo Hybrid is rapid-drying – to save your time
Make use of all the advantages a combination of a digital textile printer and screen printer have to offer to you. The Aeoon Kyo Hybrid Series is equipped with our Aeoon Dry Technology to dry your first layer within seconds before continuing with the digital printing process. By having this part included in your printer you will save valuable time. This technology consumes less energy and is more effective than traditional IP systems.

THE AEOON KYO HYBRID SERIES – THE BEST COMBINATION OF DIGITAL AND SCREENPRINTING
The Aeoon Kyo Hybrid Series provides digital textile production on an industrial scale combined with the benefits of screenprinting. Make use of the advantages of a screenprinting machine and a dtg textile printing machine: pin-sharp 600 dpi digital prints, no pre-treatment, simultaneous printing on three pallets, extraordinary washability, quick screen switching possibilities, exact screen positioning and many design possibilities. The Kyo Hybrid Series allows a maximum of flexibility. You can choose between digital printing, screen printing or a combination of both – everything is possible!


SPECIFICATIONS
Printing Method: Dtg & Screenprinting
Machine Weight: 2.000 kg
Printheads: Kyocera KJ4B
Nozzles: 2558
Ink Drops: up tp 40.000 / sec.
Number of Printheads: 4 , 8 or 12
Printing Resolution: up to 2400 dpi

TECHNICAL DETAILS
Linux OS, Aeoon TIP Software
Full Automatic Cleaning and Capping Station
Touchscreen with Aeoon Intuitive Software
App for screen settings
Durable machine body for industrial use
Power Supply:
400 / 208 VAC, 50 / 60 Hz,3Ph, 16A
Max Power Input: 10.04 kVA

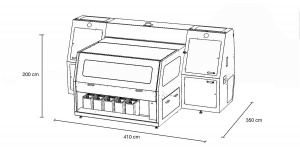

DIMENSIONS
Machine Size: 410 x 350 x 200 cm




READ MORE ON AEOON TECHNOLOGIES





Download Product Brochure (PDF)...
